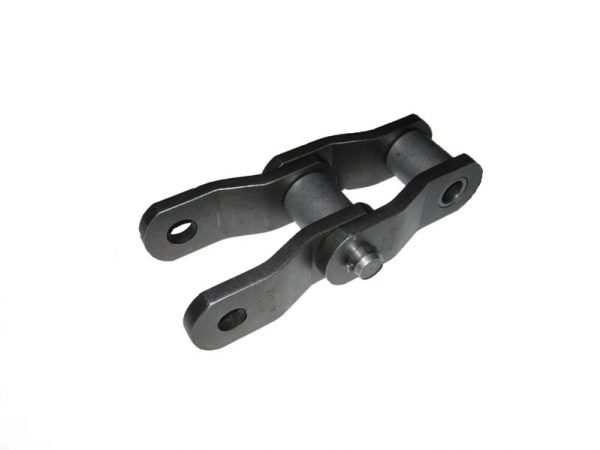

Heavy Duty Engineering Chains WG781 WG103 WG103H WG140 WB10389 WB9525 WB7900 WB7938 Offset-sindbar Roller Chains
Offset sidebar chains have been a long-time primary for many grain handling, lumber, elevating, and conveying applications. This is due to the high-strength and durable design that allows the chain to have the versatility and capability to be used in almost any heavy-duty application. We stock this chain in special configurations like rooftop, with UHM caps, and universal top. We can also supply stock and custom fabricated attachments on the chain.
1. Makke fan medium koalstof stiel, de offset sidebar roller keten ûndergiet ferwurkjen stappen lykas ferwaarming, bûgen, likegoed as kâld drukken nei annealing.
2. The pin hole is created by impact extrusion, which increases the inner surface smoothness for the hole. Thus, the matching area between the sidebar and the pin is increased, and the pins offer higher protection against heavy loads.
3. The integral heat treatment for the chain plates and rollers ensures high tensile strength. The pins additionally undergo
high-frequency induction heating for the surface after integral heat treatment, ensuring high strength, high surface hardness, and wearing resistance as well. The surface carburizing treatment for the bushings or sleeves guarantees high tensile strength, superb surface hardness, and improved impact resistance. These make sure the heavy duty transmission chain has extended service life.
|
Chain No. ISO GB
|
Pitch p
|
Width Between Plates at Inner End W(nom)
|
Roller Dia. R(max)
|
Plate Depth H(max)
|
Plate Thickness T(max)
|
Pin Width L(max)
|
Pin Dia. d2(max)
|
Breaking Load(min) Q
|
Weight Approx. q
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
daN
|
kg / m
|
|
|
WG781
|
78.18
|
38.1
|
33
|
45
|
10
|
97
|
17
|
31360
|
16
|
|
WG103
|
103.20
|
49.2
|
46
|
60
|
13
|
125.5
|
23
|
53900
|
26
|
|
WG103H
|
103.20
|
49.2
|
46
|
60
|
16
|
135
|
23
|
53900
|
31
|
|
WG140
|
140.00
|
80.0
|
65
|
90
|
20
|
187
|
35
|
117600
|
59.2
|
|
WB10389
|
103.89
|
49.2
|
46
|
70
|
16
|
142
|
26.7
|
102900
|
32
|
|
WB9525
|
95.25
|
39.0
|
45
|
65
|
16
|
124
|
23.0
|
63500
|
22.25
|
|
WB7900
|
79.00
|
39.0
|
31.5
|
54
|
9.5
|
93.5
|
18.5
|
38090
|
12.28
|
|
WB7938
|
79.38
|
41.2
|
40
|
57.2
|
9.5
|
100
|
19.5
|
50900
|
18.7
|
|
oerdracht ketting (Driving Chain)
|
04C-1 06C-1-2-3 085-1-2-3 08A-1-2-3 10A-1-2-3 12A-1-2-3 16A-1-2-3 20A-1-2-3 24A-1-2-3 28A-1-2-3 32A-1-2-3 40A-1-2-3 48A-1-2-3
|
|
|
25 35 35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 100-3 120 120- -2 120 3-140 140 2-160 160 2
200-2 240 |
||
|
Koarte Pitch Precision Roller Chain (B Series) (1,2,3)
|
06B-1-2-3 06B-1-2-3 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3 28B-1-2-3 32B-1-2-3 40B-1-2-3 48B-1-2-3 56B-1-2-3
64B-1-2-3 72B-1-2-3 |
|
|
Heavy Duty Series Roller Chain (1,2)
|
08AH-1 10AH-1 12AH-1-2-3 16AH-1-2-3 20AH-1-2-3 24AH-1-2-3 28AH-1-2-3 32AH-1-2-3 40AH-1-2-3
|
|
|
Side Bow Chain
|
40SB 43SB 50SB 60SB 63SB 80SB 08BSB 08BSBY1 10BSB 12BSB C2050SB
|
|
|
Motorfytsketen
|
410 415 415H 420 420H 428 428H 520 520H 525 525H 530 530H 630 630H
|
|
|
Engine Mechanism Chain (Timing Chain)
|
CL04
|
|
|
Self-lubrication Roller Chain
|
08BSLR 10BSLR 12BSLR 16BSLR 40SLR 50SLR 60SLR 80SLR
|
|
|
Double Pitch Transmission Chain
|
208A 208B 210A 210B 212A 212B 216A 216B 220A 220B
|
|
|
2040 2050 2060 2080 2100
|
||
|
Bush Chain
|
P15F-B P20-B P25-B P25F1-B P30F2-B P36-B P40-B P45-B P50-B P55-B P60-B P70-B P80-B
|
|
|
Ferfierkeatling
|
Rolketting mei rjochte sydplaten (A Series)
|
C08A-1-2-3 C10A-1-2-3 C12-1-2-3 C24A-1-2-3 C32A-1-2-3
|
|
C35 C40-1-2-3 C50-1-2-3 C80-1-2-3 C100-1-2-3 C120-1-2-3 C140-1-2-3 C160-1-2-3
|
||
|
Rolketting mei rjochte sydplaten (B Series)
|
C08B-1-2-3 C10B-1-2-3 C12B-1-2-3 C16-1-2-3 C20B-1-2-3 C24B-1-2-3 C28B-1-2-3 C32B-1-2-3
|
|
|
Dûbele toanhichtetransportketen
|
C208A C208AH C208B C208BL C210A C210AL C212A C212AH C212AHL C216A C216AL C216AH C216AHL C220A C220AL C220AH C220AHL C224A C224AL
C224AH C224AHL C232A C232AL C232AH C232AHL |
|
|
C2050 C2052 C2060 C2062 C2060H C2080 C2080H C2082 C2082H C2100 C2100H C2102 C2102H C2120 C2120H C2122 C2122H C2160H
C2162H |
||
|
Dûbele Pius Speed Chain
|
BS25-C206B BS25-C208A BS25-C210A BS25-C212A BS30-C206B BS30-C208B BS30-C210B BS30-C212B
|
|
|
Transportketting (M Series)
|
M20 M28 M40 M56 M80
|
|
|
Holle Pin Conveyor Chain (MC Series)
|
MC28 MC56 MC112 MC224
|
|
|
Transportketting (FV Series)
|
FV40 FV63 FV90 FV112 FV140
|
|
|
Conveyor Chain (FVT Series)
|
FVT40 FVT63 FVT90 FVT112 FVT140 FVT180 FVT250 FVT315
|
|
|
Holle Pin Conveyor Chain (FVC Series)
|
FVC63 FVC90 FVC112 FVC140 FVC180 FVC250 FVC315
|
|
|
Transportketting (Z Series)
|
Z40 Z100 Z160 Z300
|
|
|
Conveyor Chain (ZE Series)
|
ZE40 ZE100 ZE160 ZE300
|
|
|
Holle Pin Conveyor Chain (ZC Series)
|
ZC21 ZC40 ZC60 ZC150 ZC300
|
|
|
Holle pin-keatlingen
|
08BHPF 08BHPF5 08BHP9 10BHPF3 10BHPF4 12BHPF2 12BHPF3 16BHPF3 16BHPF4 40HP 08BHPF7 08BHP 50HP 50HPF4 50HPHP 60
80HPF1 80HPF2 80H-HP 80HPF3 80HPF4 HB41.75F5 A2080HP |
|
|
Welded type cranked link keatlingen
|
WR78 WH78 WR82 WH82 WR106 WH106 WR110 WH110 WR111 WH111 WR124 WH124 WR132 WH132 WR150 WH150 WR155 WH155 WR157 WH157F78 WR5 WH78F4
WH124F1 WH111F1 |
|
|
Palm oalje Chains
|
P101.6F2 P152F14 P152F17 P152F29 90R-S P101.6F64 P76.7 P152F31
|
|
|
Sûkermole keatlingen
|
DH9063 DH2198 P152F93K2 P152F78K2 DH09060 DH1796 P152F77-AS2 P203.2F9
|
|
|
Rubber wanten drager keatlingen
|
P100F155 P100F13 P100F139 P150/90
|
|
|
Lumber transportketen
|
81X 81XH 81XHE 81XHH 81XHS 500R 441.100R
|
|
|
Skerpe topketens
|
08AF34 08BF21 10AF8 41F6 06BF1 06BF37 08AF41 08BF44 08AF8...
|
|
|
Edelstiennen ketting
|
RVS Koarte Pitch Precision Roller Chain (A Series)
|
25SS-1 35SS-1 41SS-1 40SS-1 50SS-1 60SS-1 80SS-1 100SS-1 120SS-1
|
|
RVS Koarte Pitch Precision Roller Chain (B Series)
|
05BSS-1 06BSS-1 08BSS-1 10BSS-1 12BSS-1 16BSS-1 20BSS-1 24BSS-1
|
|
|
RVS Roller Chain mei rjochte kant platen
|
C40SS-1 C50SS-1 C60SS-1 C80SS-1 C100SS-1 C120SS-1 C08BSS-1 C10BSS-1 C12BSS-1 C16BSS-1 C20BSS-1 C24BSS-1
|
|
|
Stainless Steel Double Pitch Transmission Chain
|
2040SS 2050SS 2060SS 2080SS 2100SS 2120SS 208BSS 210BSS 212BSS 216BSS 220BSS 224BSS
|
|
|
RVS Double Pitch Conveyor Chain
|
C2040SS C2040HSS C208BSS C2050SS C2060SS C2060HSS C2080SS C2080HSS C2100SS C2100HSS C2120SS C2120HSS
|
|
|
Rustfrij stiel holle pin ketting
|
08BHFSS 40HPSS 50HPSS 60HPSS 12BHPSS 80HPSS C2040HPSS C2050HPSS C2060HPSS C2080HPSS HB50.8SS
|
|
|
Stainless Steel Double Pitch Hollow Pin Chain
|
C2042HPSS C2052HPSS C2062HPSS C2082HPSS C2042H-HPSS C2052H-HPSS C2062H-HPSS C2082H-HPSS
|
|
|
Opheffingskeatling
|
Auto parkeare keatling
|
12AT-1 16AT-1-2 20AT-1-2-3 24AT-1-2
|
|
Blêdkeatling
|
LH0822 LH0823 LH0834 LH0844 LH0846 LH0888 LH1022 LH1023 LH1034 LH1044 LH1046 LH1066 LH1088 LH1222 LH1223 LH1234 LH1244
LH1266 LH1288 |
|
|
BL422 BL423 BL434 BL444 BL446 BL466 BL488 BL522 BL523 BL534 BL544 BL546 BL566 BL588 BL622 BL623 BL634 BL644 BL646 666
|
||
|
Meardere Plate Bearing Pin Chain
|
LF30 MP50F2 MP50.8 MP70F1 MP70F2 MP70F3 MP80F1 MP90F1 MP90F2 MP110F1
|
|
|
Rollerless Lift Chain
|
45-1 55-1 65-1 85-1 105-1 125-1 145-1 165-1
|
|
|
Lânboukeatling
|
S Type Steel Agricultural Chain & Taheaksels
|
S32 S42 S45 S52 S55 S62 S77 S88 A550 A620
|
|
C Type Steel Agricultural Chain mei taheaksels
|
CA550 CA550/S55 CA555 CA550HD CA550V CA557 CA620 CA2801 38.1R 38.4R 38.4V 38.4VB
|
|
|
Riis Harvester Chain
|
S3558T-48001 S3558T-48002
|
|
|
Drop Forged Chain Series
|
Drop Forged Rivetless Chain
|
Keizer: 80H X348 X458 468H X658 X678 678 698 998 9118 S348 S458 S678 S698 S9118, Metrysk systeem: XT100 XT160
|
|
Cast ôfnimbere keatling
|
55 57 62 74 78
|
|
|
Stiel ôfneembare keatling
|
25 32 32W 51 52 55 62
|
|
|
Gietijzeren ketting
|
Cast Iron Chain (C Series)
|
C55 C55L C77 C188 C188L C102B C111 C131 C132
|
|
Cast Iron Chain (H Series)
|
H60 H78 H82 H110
|
|
|
Cast Iron Chain (4 Series)
|
462 477 488 4103 720 720S 730
|
|
|
Gietijzeren ketting BRH188
|
BRH188 C188CP C102B-K2 C55A C55B C55D CC600 H78A H78B H130 H138 MC33 103 4103F29 907-E51
|
|
|
Laske keatlingen
|
WR78 WH78 WR82 WH82 WR124 WH124
|
|
|
Forging Hanging Chain
|
X228 X348 X458 X678 698
|
Klik asjebleaft op 'e foto's hjirûnder om har websides te besykjen.
A: Wy hawwe in yngenieursteam, dat goed ûnderfûn hat op produkten en masine-ûntwerpen. Wy kinne jo helpe om it probleem dat jo moetsje op te lossen.
F: Hoe sit it mei jo kwaliteit?
A: Wy hawwe ús eigen fabryk en arbeider, dus leau dat ús produkten foarút binne oer ús konkurrinten.
F: Wat is jo MOQ?
A: Minimale oardekwaliteit is 1 stik.
F: Koe jo oanpast produkt produsearje neffens jo tekening as foarbyld?
A: Ja. Wy hawwe in soad ûnderfining yn 'e produksje fan net-standert produkten.
Ketting + Plestik tas + Karton + houten saak (As jo oare easken hawwe, kinne wy oanpasse neffens ferpakking fan klanteasken.)
1.De measte fan 'e standert binne op foarried dy't wy yn 3-10 dagen nei ynspeksje en pakket stjoere kinne.
2. Oanpaste produkten levertiid moat bepaald wurde neffens it nûmer.
Wy kinne in ferskaat oan betelling akseptearje.
1) TT, 30% boarch, 70% foar ferstjoering.
2) L / C op sicht. (hege bankkosten, net suggestje, mar akseptabel)
3) 100% Western Union fan tefoaren. (spesjaal foar loftsending as lyts amoun)
4) Lytse bestelling troch PayPal.
Wy tasizze dat de bêste priis sil wurde oanbean troch de hege kwaliteit yn Sina! Wy akseptearje ek spesjale oarder oer de produkten. As jo ynteressearre binne yn ús produkten. Wifkje asjebleaft ús te litten. Wy binne bliid om jo de detaillearre ynformaasje te jaan. Wy tasizze dat ús produkten feiligens soene wêze en yn hege kwaliteit en ridlike priis wiene. As jo ynteressearre binne yn ús produkten, nim dan kontakt mei ús asap. Wy sykje oprjocht nei jo gearwurking.
De measte fan ús produkten wurde eksporteare nei Jeropa as Amearika, sawol standert as net-standert produkten beskikber. Wy kinne produsearje neffens jo tekening as foarbyld. Materiaal kin standert wêze as neffens jo spesjale fersyk. As jo ús kieze, kieze jo foar betrouber.
Oerflakbehanneling
Annealing, natuerlike kanonisaasje, waarmtebehandeling, polystjen, nikkelplaten, ferromjen, sinkplaten, giele passivisaasje, gouden passivisaasje, satyn, Swart oerflak skildere ensfh.
Ferfiermetoade
CNC-ferwurking, punch, draaien, frezen, boarjen, slypjen, broachjen, lassen en montearjen
FAQ
F: Binne jo hannelsbedriuw of fabrikant?
A: Us groep bestiet út 3 fabriken en 2 ferkeapkorporaasjes yn it bûtenlân.
F: Biede jo samples oan? is it fergese of ekstra?
A: Ja, wy koenen biede de stekproef fergees lading mar net betelje de kosten fan fracht.
F: Hoe lang is jo levertiid? Wat is jo betellingsbetingsten?
A: Algemien is it 40-45 dagen. De tiid kin ferskille ôfhinklik fan it produkt en it nivo fan oanpassing. Foar standertprodukten is de betelling: 30% T / T foarôf, balâns foar ferstjoering.
F: Wat is de krekte MOQ of priis foar jo produkt?
A: As OEM-bedriuw kinne wy ús produkten leverje en oanpasse oan in breed oanbod fan behoeften. Sa kinne MOQ en priis sterk ferskille mei grutte, materiaal en fierdere spesifikaasjes; Bygelyks djoere produkten as standert produkten sille normaal in legere MOQ hawwe. Nim dan kontakt mei ús op mei alle relevante details om de meast accurate offerte te krijen.
